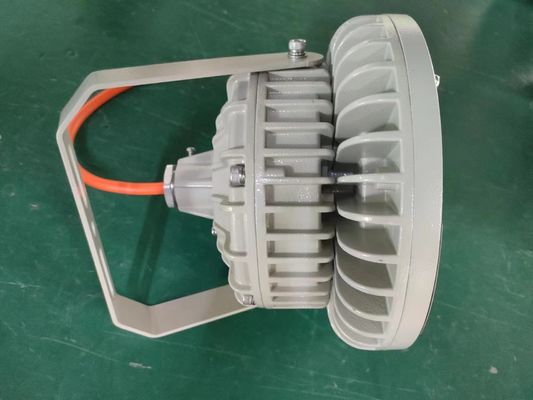

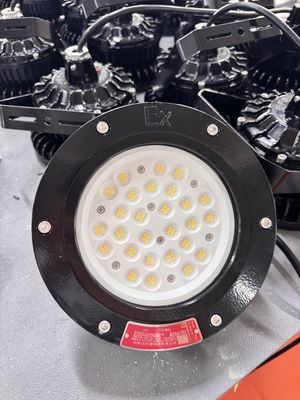

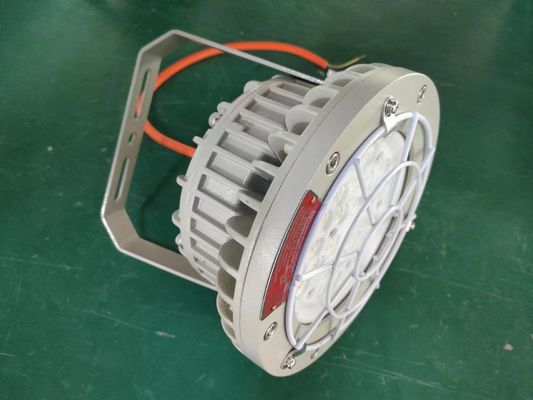

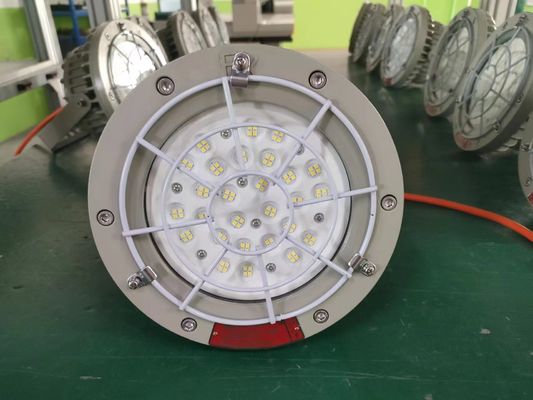

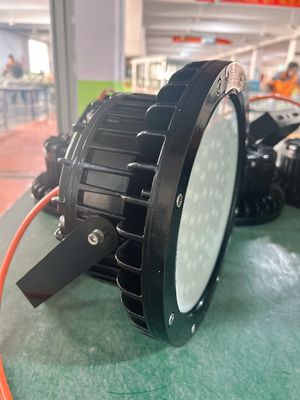

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights
High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

Imagem Grande :  High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

Detalhes do produto:
Lugar de origem: Jiangsu, China
Marca: Crown Extra
Certificação: ATEX,CE,ROHS,CNEX,ISO9001
Número do modelo: GYD830
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1pc
Preço: USD135-180 per pc
Detalhes da embalagem: Caixa de madeira 、 Caixa de madeira 、 palete
Tempo de entrega: 15 dias úteis
Termos de pagamento: T/T.
Habilidade da fonte: 50000pcs/mês

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights

descrição
Marca: Coroa extra Nome do produto: Lâmpadas à prova de explosão GYD830
Material: Liga de alumínio Cri: RA: ≥80
Eficiência: 120lm/w Certificado: Suporte
CCT: 3000/4000/5000/5700K Tensão: AC 100-277V, 50Hz/60Hz: 24/36VDC

High pressure casting aluminum alloy shell WF2 outdoor anti-corrosion explosion proof high bay lights





GYD830 Series



Features:

Zone 2, Zone 21&22

Aluminium alloy fitted with cooling fins for better heat dissipation
Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
Multi-mounting arrangements to suit any lighting layout
Wide range of light sources and wattages to meet specifiers' needs
Saves in energy, maintenance and installation costs
Instant, bright illumination Instant, bright illumination







Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations





Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber





Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Electrical Data
Ex Marking
Ex nR e mb IIC T5 Gc/Ex tD A21 IP66 T80
Classification
Group II, Catogory 2 GD;
IP Degree
IP65
Corrosion Resistant
WF2
Input Voltage
90-305VAC/50~60HZ or 24V DC
Power Factor
0.95
Conduit Entries
G 3/4"
Terminal
≤2.5mm2
Mounting Styles
Pendant; Ceiling; Wall Bracket;Stanchion





Ordering Information
Model NO. GYD8301 GYD8302
Power Supply 50Watt 100Watt
Lumen 5500Lm 11000Lm
Light Source LED LED
Fixture Weight 3kg 4kg



High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights 0

High Pressure Casting Aluminum Alloy Shell WF2 Outdoor Anti Corrosion Explosion Proof High Bay Lights 1





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
